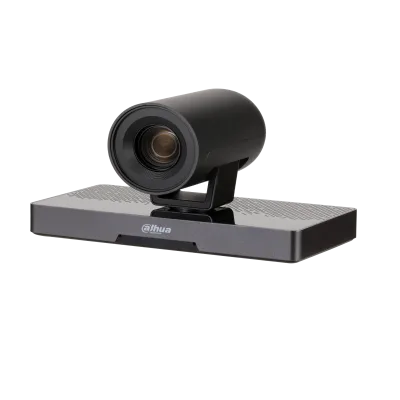

VCS-C5B0

Video

Image Sensor

1/2.8” CMOS

Effective Pixels

2.13MP

Resolution

1080P60fps, 1080P25/30fps, 720P60fps, 720P25/30fps

Video Codec

H.264, MJPEG, YUV

Lens Zoom

10x

Focal Length

4.7~47mm

Aperture

F1.6–F2.5

Field of View

6.43° ~ 60.9°

Minimum Illumination

1.8Lux

Electronic Shutter Speed

1/30s–1/10000s

Focus

Manual/Auto

Noise Reduction

2D NR/3D NR

Others

Auto Gain Control, WDR, White Balance

PTZ

Pan

Pan: –90°~+90°

Tilt

Tilt: –20°~+20°

Presets

255

Audio

Built-in Mic

6 meters pickup radius

USB

Communication protocols

UVC 1.1

PTZ Control

Support

Interfaces

Video Output

1 × USB 3.0/2.0

Serial Port

1 × RS232

Installation

Installation

Horizontal/Ceiling/Wall

Physical Features

Power Supply

12V DC (10.8~13.0V DC)

Operating Conditions

0°C–45°C

Dimensions(W×D×H)

218mm × 119mmx119mm(8.6” × 4.7” × 4.7”)

Package Size(W×D×H)

627mm × 527mm × 505mm(24.7” × 20.7” × 19.9”)

Weight

1.8kg (3.97lb)

Color

Black

Accessories

DC12V power adapter, IR remote controller, User manual, USB video line
