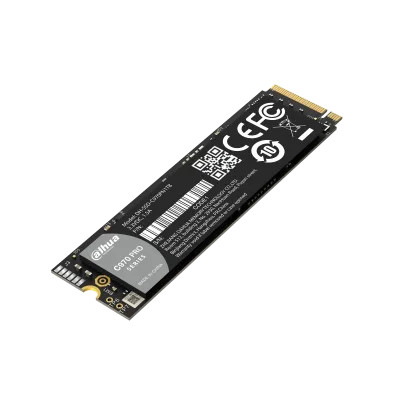

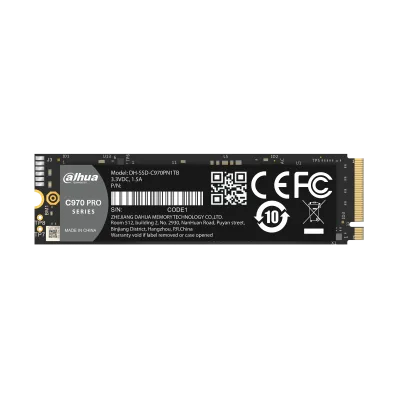

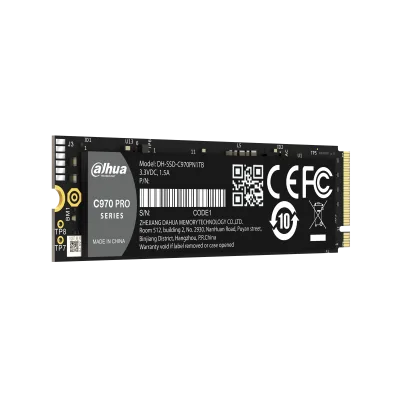

SSD-C970PN1TB

Technical Specification

Product Model

DHI-SSD-C970PN1TB

Capacity1

1024 GB

Form Factor

M.2 2280

Port

PCIe Gen 4.0 x 4

Net Weight

Max. 8 g (0.02 lb)

Product Dimensions2

80.00 mm × 22.00 mm × 3.60 mm (3.15″ × 0.87″ × 0.14″)

Packaging Dimensions

140.5 mm × 105.5 mm × 15.50 mm (5.53″ × 4.15″ × 0.61″)

Memory Component

3D TLC

Power Consumption3

5.97 W (max); 1.88 W (idle)

S.M.A.R.T

Yes

TRIM

Yes

Garbage Collection

Yes

Sequential Read3

Up to 7,400 MB/s

Sequential Write3

Up to 5,200 MB/s

4K Random Read3

Up to 844,000

4K Random Write3

Up to 940,000

MTBF

1,500,000 hours

Operating Temperature

0 °C to +70 °C (+32 °F to +158 °F)

Storage Temperature

–40 °C to +85 °C (–40 °F to +185 °F)

Operating Humidity

5%–95% (non-condensing)

Vibration Resistance

1-1000 Hz, 2.4 G

TBW

500 TB

Warranty4

3-year limited warranty

Reference
Information

1. Capacity calculation: 1 GB = 1 billion bytes (IDEMA). Actual available capacity might be reduced (due to formatting, partition, operating system applications, or other necessary usage).
2. The dimensions are after installing cooling plate.
3. System configuration of performance test: Chip-AMD Ryzen 5 5600X 6-Core Processor 70 GHz, 8G-DDR4, operating system-Windows 10 x64, testing tool-CrystalDiskMark 6.0.0 x64.
4. Warranty period or maximum write amount (TBW), whichever comes first.
5. High performance SLC cache has been enabled.
