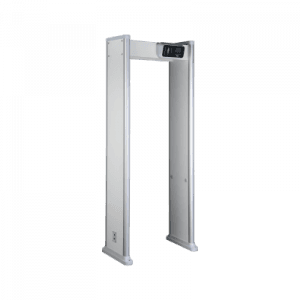

DHI-ISC-D718-TS2-Walk-through Metal Detector

> 6, 12, 18 detection zones with corresponding indicators

> Built-in traffic lights
> 7-inch full color touch screen LCD display
> Easy-to-install modular design
> Monitor and display the real-time signal strength of environmental interference
> Counts passing number, pass/return numbers, and alarm number
> Pass/Return statistics, alarm statistics, and searching by hour/day
> Displays the alarm position via human shape display
> Ultra-high sensitivity, minimum detect target: *CNY ten-cent coin
> Independent detection of ferromagnetic and non-ferromagnetic metals
> Innocuous metal object filtering
> 90 applications selectable
> Automatically searches operating frequency (100 levels available)
> Random alarm
> 2-level user management of Operator & administrator management
> Supports multi-language, real-time switching
> 2-channel alarm output
> Monitoring and configuration through the network, and managed by platform
> IR remote controller
> Supports SLA back-up battery
> 2-channel alarm output
> Temperature monitoring display, support visible and audible alarm for abnormal temperature

Camera

> Uncooled VOx thermal sensor technology
> Athermalized lens (thermal camera), focus-free
> 4-MP 1/2.7” progressive scan CMOS
> ROI, motion detection, color palettes
> Smoking and call behaviour detection
> Fire detection & alarm
> Built-in 1/1 alarm in/out
> Micro SD memory, IP67, PoE
> Smart linkage with strobe light & audio
> Dual image fusion (visible and thermal images)

Category: Metal Detector Tags: Dahua, metal detector

Description

DHI-ISC-D718-TS2-Walk-through Metal Detector

CONTAACT US FOR MORE DITALIES

Device

Precise Positioning

6, 12, 18 overlapping detection zones, bilateral transmission and receipt of detection signals; 2-panel indicator lights

Zone Indication

6, 12, 18 independent zones selectable, and multiple metal items can be located simultaneously

IR Sensor

Supports the switching of multiple start-stop modes for two-pair of IR sensor.
Infrared sensor can reduce false alarms; automatic alarm statistics and pass/return statistics

Adjustable Sensitivity

255 adjustable sensitivity levels in each detection zone (sensitivity increases by levels)

Security level

Supports 1-100 selectable security level.

POST (Power On Self Test)

Power on self test.

Operating Frequency

Supports 1-100 selectable operating frequency ranges, and supports automatic frequency search.

Alarm Volume

Support 0-10 adjustable alarm volume, mute mode can be set.

Alarm Tone

Supports 9 kinds of selectable alarm tones, and independent tone for temperature alarm.

Remote Control

An IR remote controller with maximum remote control range of 2 m (6.56 ft)

Leakage Current

<0.5 mA, complying with safety requirements for electronic devices

Certifications

GB 15210-2018
IEC 60068-2-1
IEC 60068-2-2
CE-LVD: Low Voltage Directive 2014/35/EU
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
FCC: 47 CFR FCC Part 18, Subpart B

Safety

ICNIRP 2010 Guidelines
ICNIRP 1998 Guidelines
EC directive 2013/35/EU
EC recommendation 1999/519/EC
IEEE C95.1:2005

Ports

Power Button

Power switch on both door panels, and metal detection power switch on the front panel

Indicator

One green indicator

Environmental Noise

Monitors and displays real-time signal strength of environmental interferences

RS-485

1

Alarm In/Out

2-channel input, and 2-channel output

Power Output

12 VDC

Detector Underside Power Port

Aviation power port, 1 for each side.

Detector Underside Network Port

Waterproof RJ45 port, 1 for each side.

Regular Parameters

Tunnel Dimensions

2000 mm × 760 mm × 500 mm

Product Dimensions

2221 mm × 916 mm × 537 mm

Packaging Dimensions

2275 mm × 775 mm × 235 mm

Net Weight

42 kg (92.59 lb)

Gross Weight

52 kg (114.64 lb)

Operating Voltage

12 VDC, power adapter (included): 100–240 VAC,
50/60 Hz

Max. Power Consumption

26 W

Standby Power

15.5 W

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

0%–95%

Storage Temperature

–20 °C to +65 °C (-4 °F to +149 °F)

Storage Humidity

0–95% RH

Installation

Floor mounted

Camera Technical Specification

Thermal

Detector Type

Vanadium Oxide Uncooled FPA

Max. Resolution

256 × 192

Pixel Pitch

12 μm

Spectral Range

8 μm–14 μm

Thermal Sensitivity (NETD)

<50 mK (@f/1.0, 25 Hz, 300K)

Focal Length

3.5 mm

Field of View

H: 50.6°, V: 37.8°

Close Focus Distance

0.5 m (1.64 ft)

Effective Distance
Human (1.8 m × 0.5 m)

D: 146 m (479 ft)
R: 38 m (125 ft)
I: 19 m (622 ft)

Effective Distance
Vehicle (4.0 m × 1.4 m)

D: 389 m (1276 ft)
R: 97 m (318 ft)
I: 49 m (161 ft)

Aperture

F1.0

Digital Detail
Enhancement (DDE)

Yes

Digital Zoom

16 ×

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

Image Flip

90°; 180°; 270°

Color Palettes

18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.)

Visible

Image Sensor

1/2.7” CMOS

Max. Resolution

2336 × 1752

Pixel

4 MP

Electronic Shutter Speed

1/30,000 s–1 s

Min. Illumination

Color: 0.05 lux
Black & white: 0.005 lux
0 lux (IR on)

IR Illumination Distance

≥ 30 m (98.43 ft)

IR Illuminator On/Off
Control

Auto; manual

Focal Length

4 mm

Aperture

F1.6

Field of View

H: 71.2°
V: 52°
D: 92.6°

Focus Control

Fixed

Close Focus Distance

1.0 m (3.28 ft)

Day/Night

Auto (ICR); Color and B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/Natural

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥55 dB

Region of Interest (RoI)

Yes

Image Flip

90°; 180°; 270°

Exposure Compensation

Yes

Intelligence

General Intelligence

Tripwire; intrusion

Advanced Intelligence

Fire detection & alarm
Cold & hot spot trace
Human & vehicle classification
Smoking detection
Call detection

Video and Audio

Video Compression

H.265/H.264M/H.264H/H.264B/MJEPG

Resolution

Thermal:
Main Stream: 1280 × 960 (1.3M)/XVGA (1024 × 768)/
VGA (640 × 480)/256 × 192, 1280 × 960 by default
Sub Stream: VGA (640 × 480)/256 × 192, 256 × 192 by
default
Visual:
Main Stream: 2336 × 1752/1080p (1920 × 1080)/720p
(1280 × 720)/D1 (704 × 576), 2336 × 1752 by default
Sub Stream: 720p (1280 × 720)/D1 (704 × 576)/CIF (352
× 288), 352 × 288 by default

Frame Rate

Thermal
50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by
default; (sub stream) 1 fps–25 fps adjustable, 15 fps by
default
60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by
default; (sub stream) 1fps–30 fps adjustable, 15 fps by
default
Visual
50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by
default; (sub stream) 1 fps–25 fps adjustable, 15 fps by
default
60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by
default; (sub stream) 1 fps–30 fps adjustable, 15 fps by
default

Audio Compression

G.711a; G.711mu; PCM

Network

Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS;
UPnP; NTP

Edge Storage

Micro SD card (256 G)

Interoperability

ONVIF; CGI

Browser

IE: IE8 and the later, and explorer with IE core
Google: 42 and the earlier
Firefox: 42 and the earlier

User/Host
